Rubber tension screen

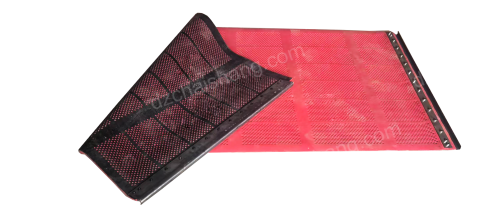

Tensioned rubber screen meshes are made of premium grade abrasion resistant rubber compound, which are punched into specific sieves required and embeded in canvas, nylon, steel plate or steel wire as skeleton as the reinforcement for tensioning, primarily for fine to medium coarse screening in dry applications with a max feed size of 250 mm.

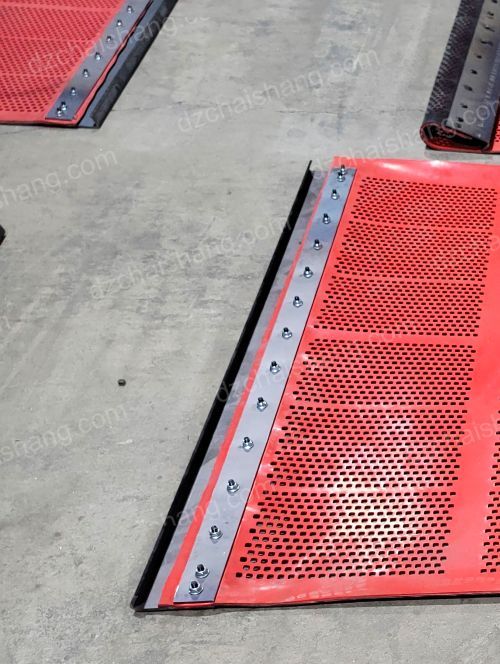

These panels can extend from one side of the screen to the other side, in a direction perpendicular to the feed direction.They are equipped with hooks on both sides to tension the whole panel.

Rubber tension screen-CHAISHANG | Polyurethane Screen Mesh,Rubber Screen Panels,High frequency screen mesh,Belt Cleaner,Flotation Cell


General specifications:Material: rubber.
Aperture type: round, square or rectangular.
Aperture size: 5mm-250mm.
Panel size: Widths1500mm, Lengths2950mm.
Connection type: hook, bolt or layering(depression bar).
Customization accepted*

Rubber tension screen-CHAISHANG | Polyurethane Screen Mesh,Rubber Screen Panels,High frequency screen mesh,Belt Cleaner,Flotation Cell

Performance features:

1.High impact resistance

2.Fine wear resistance and long service life.

3.Easy installation and quick maintenance.

4.Low noise.

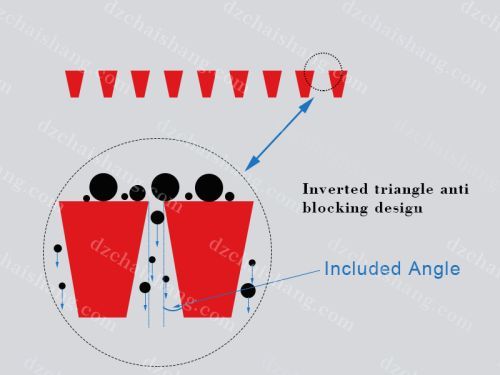

5.High screening efficiency and low percentage of plugged hole.

6.Fine vibration absorption performance.

Rubber tension screen-CHAISHANG | Polyurethane Screen Mesh,Rubber Screen Panels,High frequency screen mesh,Belt Cleaner,Flotation Cell

Main applications:

Compared with wire screen mesh and PU screen mesh, tensioned rubber screen mesh is outstanding for the purposes of screening, grading of larger grained objects, as the essential parts of all kinds of mainstream vibrating screens.
In addition, the application fields are very broad,such as ferrous and nonferrous metallurgy (iron ore, manganese ore, lead zinc ore, limestone, fluorite, cooling blast furnace slag, coke, and other raw materials), coal chemicals, building material, abrasive waste disposal, quarries, etc.
